overview

·KML drainage pipe and fittings are used for grease-containing waste water of professional kitchens and similar facilities.

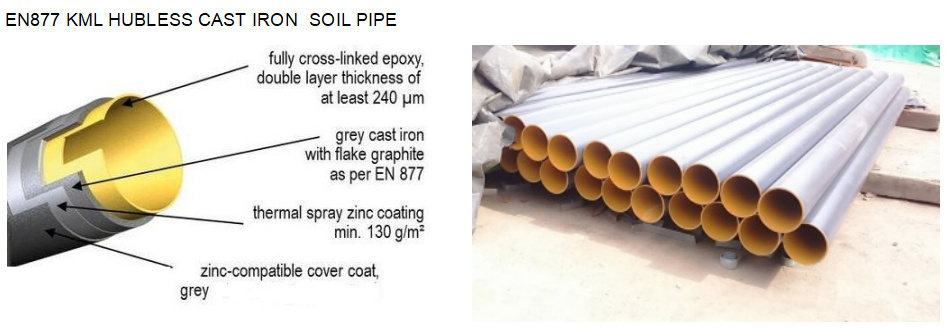

·Outside coating:Bear a spray zinc coating with an areal density of min 130g/㎡，and above that an epoxy cover of  a minimum of 60um.

·Inside coating is orche-coloured epoxy.A double layer of  resin epoxy with a total layer thickness 240um.

·KML fittings are coated inside and outside with a high quality powder epoxy of least 120um.

Quick Details

Place of Origin:China                                                                                    Standard: BS EN877/DIN 19522/ISO 6594

Application: Grease-containing waste water,minernal oils and solvents          Color:External darken gray,Internal yellow

Coating: Epoxy Resin Paints&Powder Coating                                                Marking:OEM  or at customers' requirements

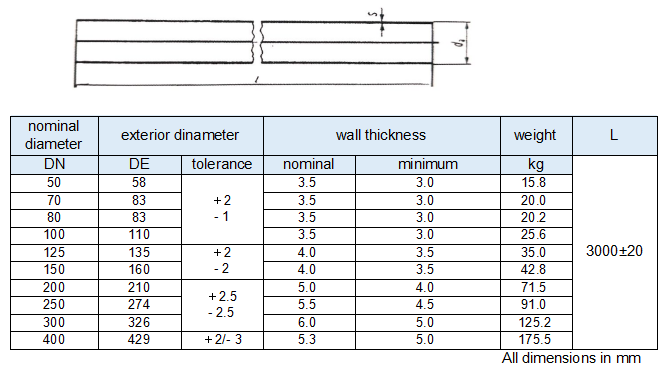

Material: Gray cast Iron                                                                                  Size: DN50 to DN400

Length: 3m

Packaging & Port

‍

Packaging Details: Wooden pallet

Port: Xingang,Tianjin,China

Inspection photo:
