overview

·The SML no-hub cast iron drainage pipes and fittings meet the standard of  BSEN877,DIN19522,ISO6594.The materials are 100% reusable and recyclable,with low sound transmission,fire proof,leak proof and anti-corrosive,They are widely used for evacuation of water from buildings,drainage,waste and vent.Also rainwater systerm installed outside  buildings and buried system underground can be supplied.

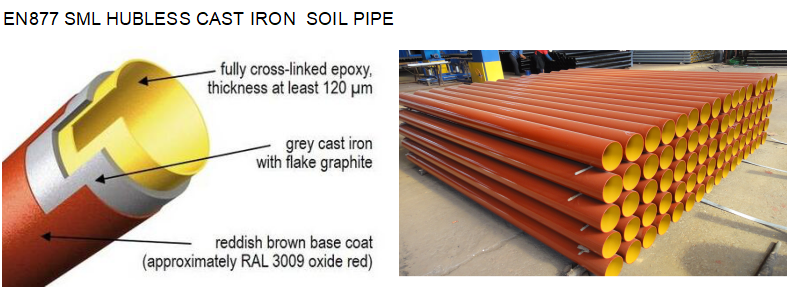

·The EN877pipes outside coating is red,epoxy with a thickness of  not  less than 60um.

Inside coating is yellow epoxy resin with a thickness of  120um. Or inside and outside are more than 120μm powder epoxy coating with red colour.

·The fittings are also red inside and outside ,liquid epoxy resin  is over 60um,and powder epoxy is over 120um thick.

Quick Details

Place of Origin: China                                                              Standard: BS EN877/DIN 19522/ISO 6594

Application:For waste water drainage                                      Color:Outside red,Internal yellow or orche,

Coating: Epoxy Resin Paints&Powder epoxy Coating                Marking:OEM or M-Tub or at customers' requirements

Material: Gray cast Iron                                                            Size: DN40 to DN300

Length: 3m

Packaging & Port

Packaging Details: Wooden pallet

Port: Xingang,Tianjin,China

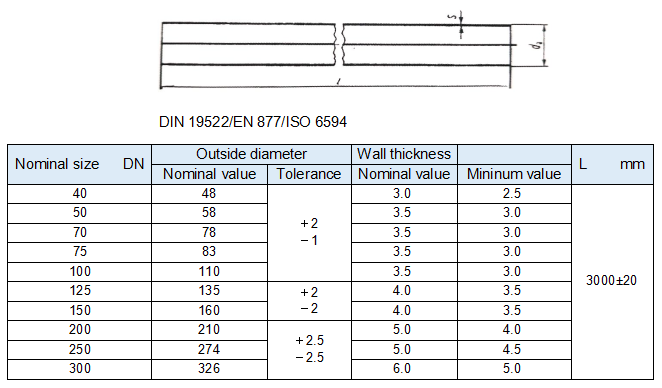

DIN 19522/EN 877/ISO 6594

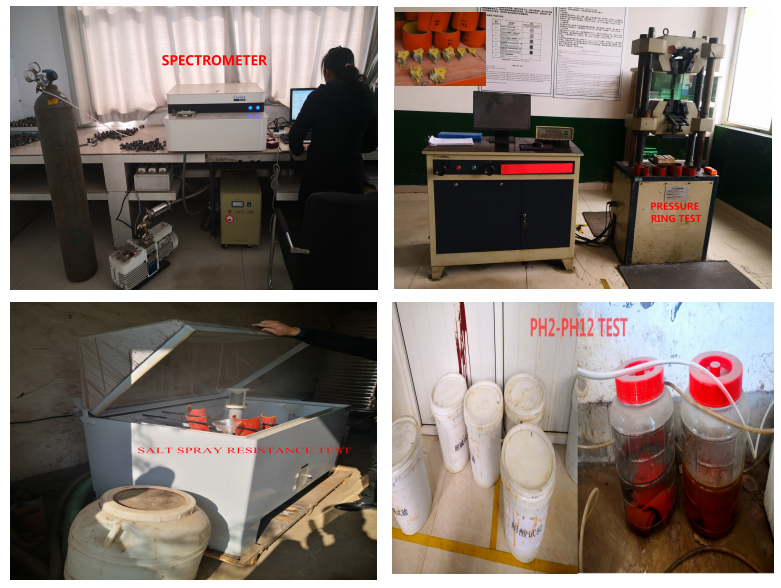

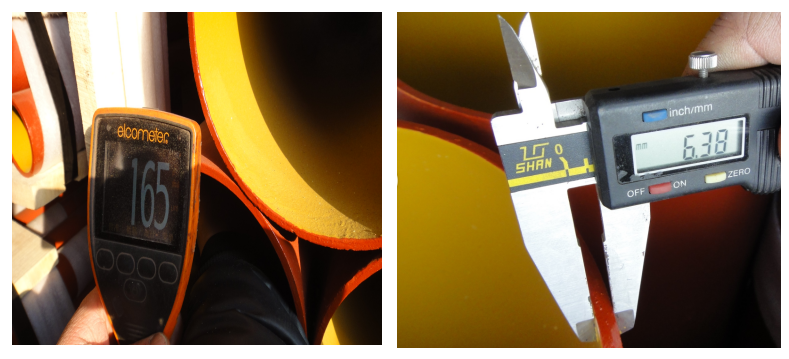

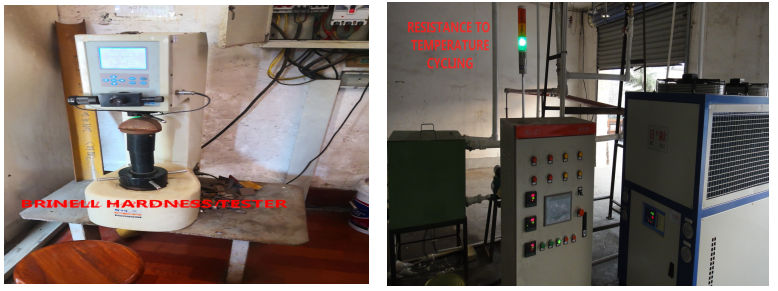

Inspection photo:
