overview

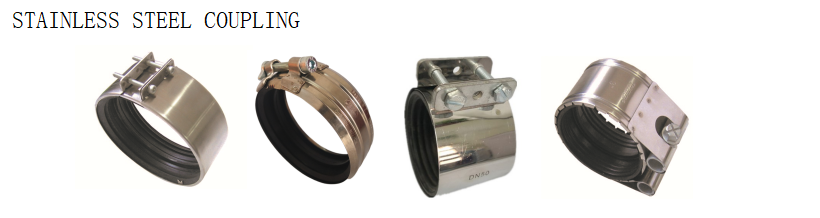

No-hub  couplings are engineered to connect No-hub cast iron pipe and fittings,cast iron pipe and plastic pipes or bronze pipes.The couplings consist of a high quality elastomeric compound gasket housed inside a stainless steel corrugated shield.

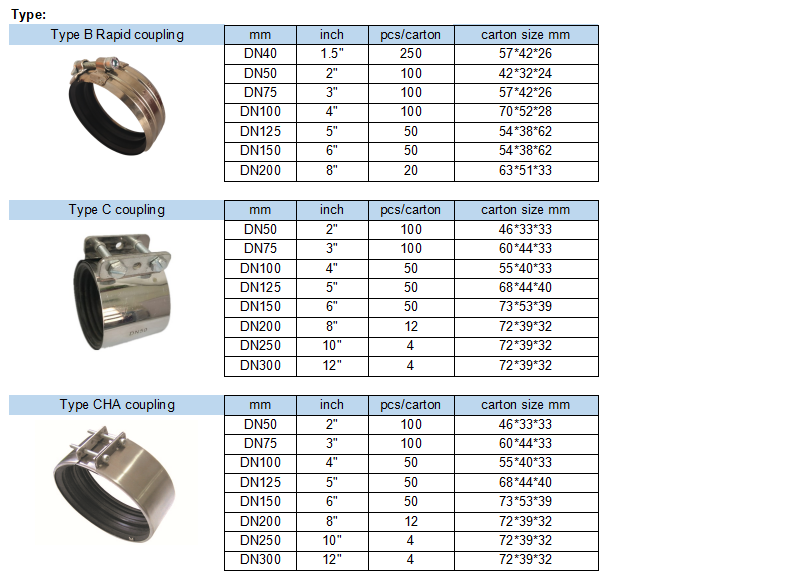

1.Available in size range from 1 1/2"-12".(DN 40 50 70 75 100 125 150 200 250 300)

2.Different various materials can be chosen by customers:

   Shield:300/301/304/316 stainless steel

   Band:300/301/304/316 stainless steel

   Screw housing:300/301/304

   Screw :301/304 stainless steel/carbon steel

   Eyelets:300/301/304/316 stainless steel and flexible

   Gasket :Neoprene elastomer /NBR/ EPDM

3.Makings : logo, standard, nominal diameter etc, upon customer's request.
